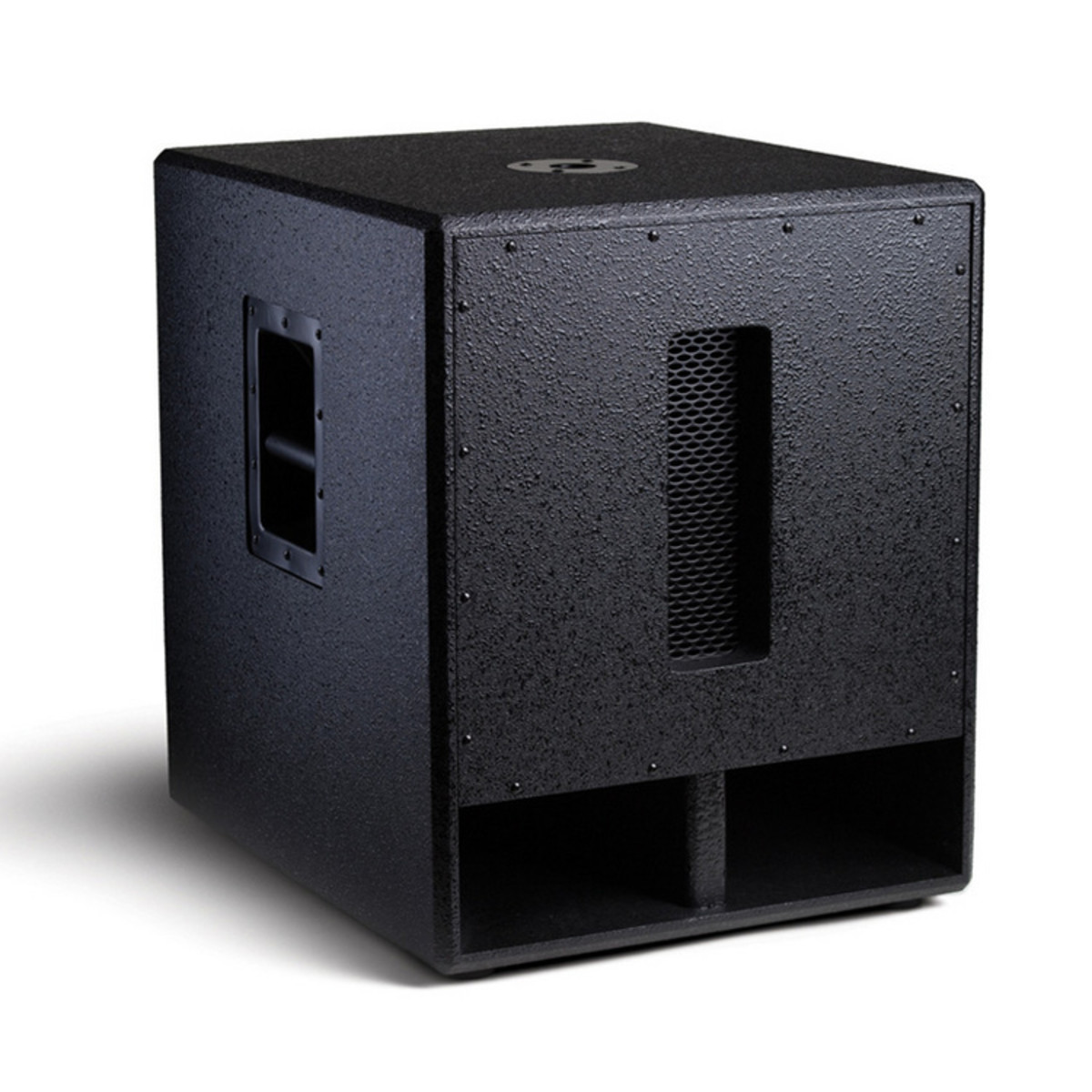

DISC Alto Tourmax SX SUB 15" Passive PA Subwoofer

Full Description

The frequency range of the Tourmax SX Sub 15" Passive PA Subwoofer has been specifically tailored to provide smooth, low-end sound production in the 35Hz-200Hz range. But that's not the only reason to add a SX SUB15 to your gigging rig. Having a sub's big low-end response often means that you can run your PA at a lower volume level while still retaining a large, full sound.

The Tourmax SX Sub 15" Passive PA Subwoofer is a passive subwoofer system offering a large 15" LF driver It rates at 400 watts continuous and 1600 watts peak and features a 3" voice coil, two parallel Speakon NL4 jacks for input and thru (passive crossover), and is housed in a rugged, compact, 18mm Birch ply cabinet with durable metal handles. When you're ready to extend the frequency range of your live performance reinforcement, TOURMAX subwoofers are the effective, economical sound choice.

Features / Specifications:

• 400 Watt Continuous (800W Program, 1600W Peak)
• 15" low frequency transducer, 3" voice coil
• Two parallel Speakon NL4 jacks for input and thru connections, PASSIVE CROSSOVER ON THRU
• Compact wood cabinet with metal handle

• Passive System Type: Band-Pass
• Continuous Power: 400W
• Program Power: 800W
• Peak Power: 1600W
• Max SPL at 1m: 123dB Continuous / 126dB Peak
• Frequency Response (-10dB): 45Hz-200Hz
• Impedance: 4 Ohms Nominal
• Crossover Frequency: 160Hz / 6 dB/Oct
• Low Frequency Driver: 15" Woofer / 3" Voice coil
• Connectors: 2 x SPK4 @Power Input / Output
• Cabinet: Multi-layer plywood /Metal Handle / Black Paint finishing
• Dimensions (HxWxD): 600mm x 485mm x 600mm
